The LH-6000 is a high quality headshell is recommended for the MC Windfeld Ti and the Cadenza Series. Its rounded front portion facilitates proper mounting and compliments each of these cartridges.
Knowing the fundamental headshell dimensions will in a lot of cases make it easier to mount and align cartridge and tonearm correctly. Please scroll to the bottom of the page to see the headshells mounting dimensions chart.

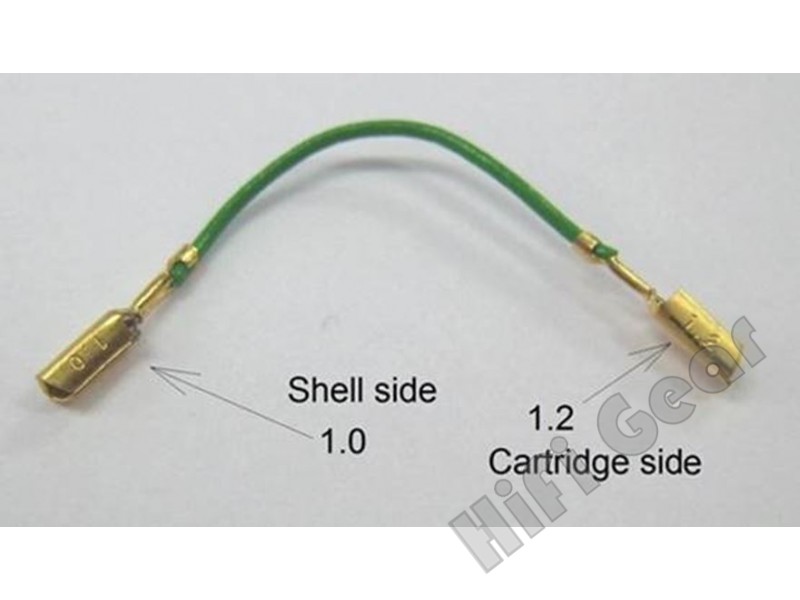

The LH-6000 comes with lead wires for easy and convenient connection
- Universal mount
- Magnesium
- Weight without screws - 13.5 grams
- Mounting distance min. - 36.6 mm
- Mounting distance max. - 42.4 mm
- Headshell length - 47.5 mm
- Headshell width - 19.1 mm
以鎂合金材料鑄製高度風唱頭殼
前端以半圓型設計以吻合Windfelf 及 Cadenza 等唱頭
淨重：13.5 g
通用安裝
鎂合金
不含螺絲的重量 - 13.5 克
最小安裝距離 - 36.6 毫米
最大安裝距離 - 42.4 毫米
頭罩長度 - 47.5 毫米
頭罩寬度 - 19.1 毫米

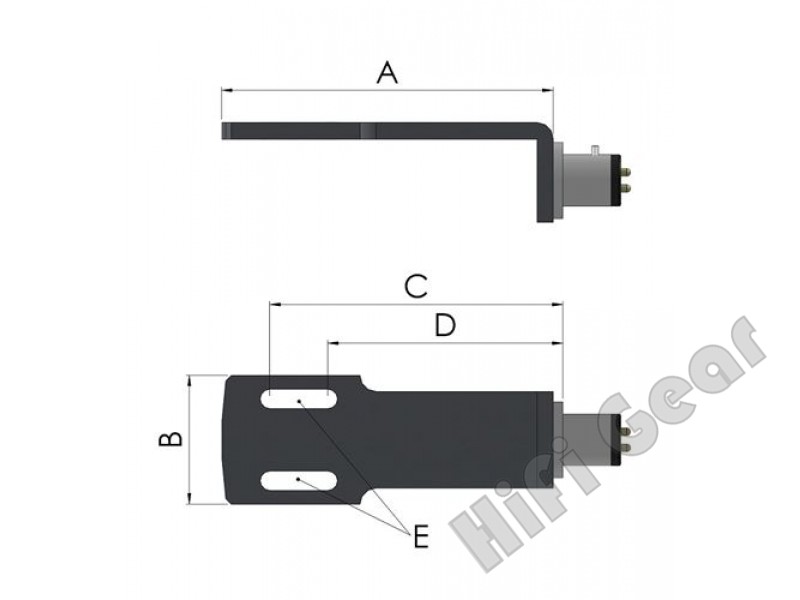

| HEADSHELL MODEL | A Headshell length | B Headshell width | C Mounting distance max. | D Mounting distance min. | E Screw diameter max. |
| LH-2000 | 50.3 mm | 20.0 mm | 43.4 mm | 35.3 mm | N/S |
| LH-4000 | 51.9 mm | 19.1 mm | 45.6 mm | 39.5 mm | N/S |
| LH-6000 | 47.5 mm | 19.1 mm | 42.4 mm | 36.6 mm | N/S |
