DEDALUS USB
Refined balance
Dedalus USB a Hi-End USB cable with refined construction and natural sound. Derived from Invictus, it is the ideal combination of performance and cost.
Made in Italy
Specific geometry for USB signals with silicon RNR
7N MARC© ultra-pure copper conductors
Five shields with differentiated insulation 6 x cylinder system
Shielded non-magnetic connectors with 24 K gold-plated copper contacts

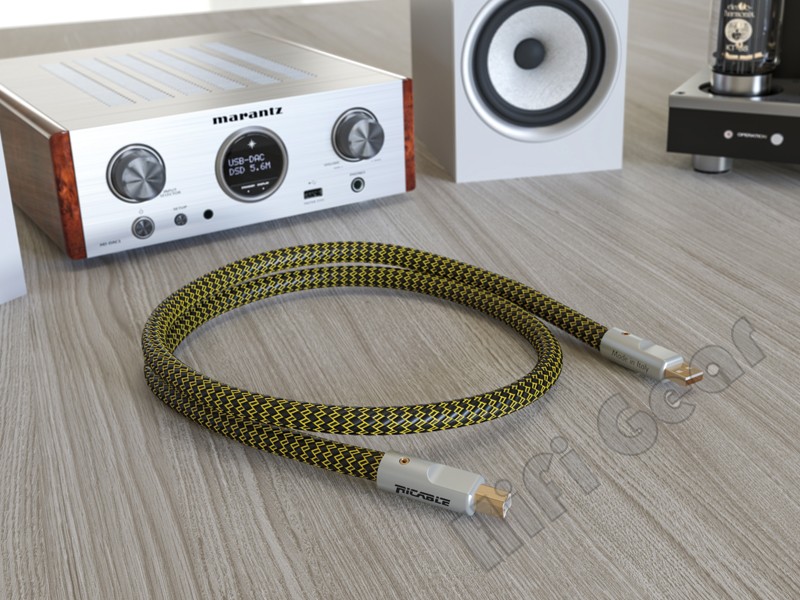

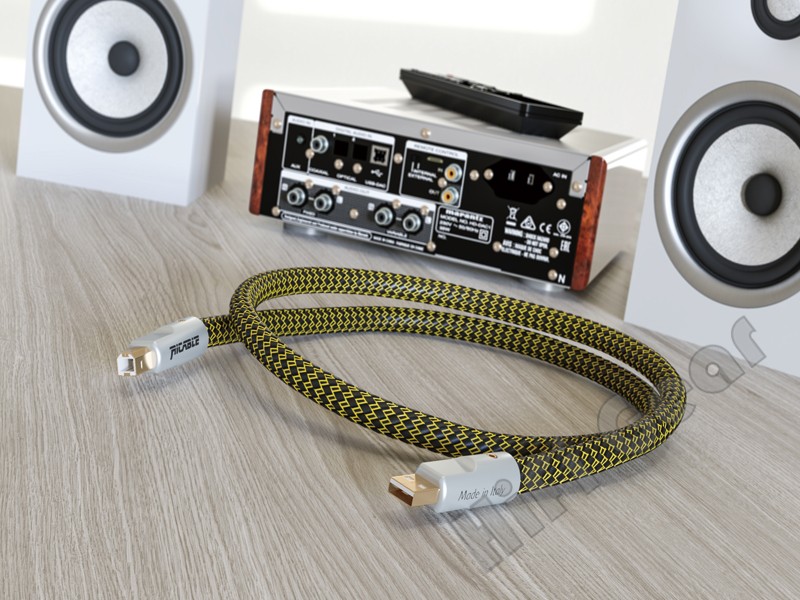

DEDALUS USB - USB 2.0 A/B Digital Hi-End Audio Cable
USB Digital Cable to connect DAC and Computer for Hi-Fi liquid music listening
Technical specifications
Capacity : 31 pF/m
Impedance : 90 Ω
Resistance : 70 Ω/km
Max. transmission distance : 25 m passive - 30 m powered
External diameter : Ø 14 mm
Material Conductors :MARC Pure Copper 7N 99.99999%.
Diameter strand : 0.08 mm
Structure Conductors : UR System (Asymmetric Twist System specific for USB)
Conductor sections Power supply : 2 x 0.34 mm²
Conductor shielding Power supply : Mylar/Aluminium + OFC Copper Braid with 80% coverage
Conductor geometry Power supply : Parallel
Dielectric Conductor insulation Power supply : Polyethylene R-TEC
Conductor sections Data : 2 x 0.22 mm²
Conductor shielding Data : Mylar/Aluminium + OFC Copper Braid with 90% coverage
Conductor geometry Data : Concentric Twisted
Dielectric Conductor Insulator Data : Polyethylene R-TEC
RNR Noise Reduction Data : Silicon semiconductor
Internal insulation : 6 x cylinder system
External shielding : Tinned OFC Copper Braid
External Protection : High density sheathing with Polyethylene/Nylon overbraid
Connector material : Non-magnetic alloy casing
Contact : Hand-welded with special Eutectic Alloy Sn/Ag/Cu
Features Connectors : Copper contacts 24K Gold plated
